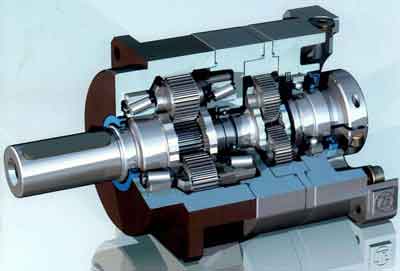

Compared with other reducers, precision planetary reducers have high rigidity, high precision (single level can even be within 1 arc), high transmission efficiency (up to 95% in single stage), high torque/volume ratio, lifetime free Maintenance and other characteristics. Most are installed on stepper motors and servo motors to reduce speed, increase torque, and match inertia.
|
|
|
| |
|
Gear Ratio
|
L1 Length(mm)
|
Efficiency
|
Rated Torque
|
Permissible Torque(Max)
|
Noise (dB)
|
Backlash min. at No-load
|
Weight(g)
|
1 Stage |
3.71, 5.18, 6.75 |
25.6 |
90% |
0.1N.m |
0.3N.m |
＜ 60dB |
≤ 1.5°
|
60g |
2 Stage |
14 , 19 , 27 , 35 , 45 |
34 |
80% |
0.4N.m |
1.2N.m |
85g |
3 Stage |
51 , 71 , 100 , 139 , 181 , 236 , 307 |
42 |
73% |
0.8 N.m |
2.5N.m |
106g |
| Download Planetary Geared Steppers Catalogue - 201909 here! |
|
| Please contact us for further information and customrequirements. |
|
| |
|
